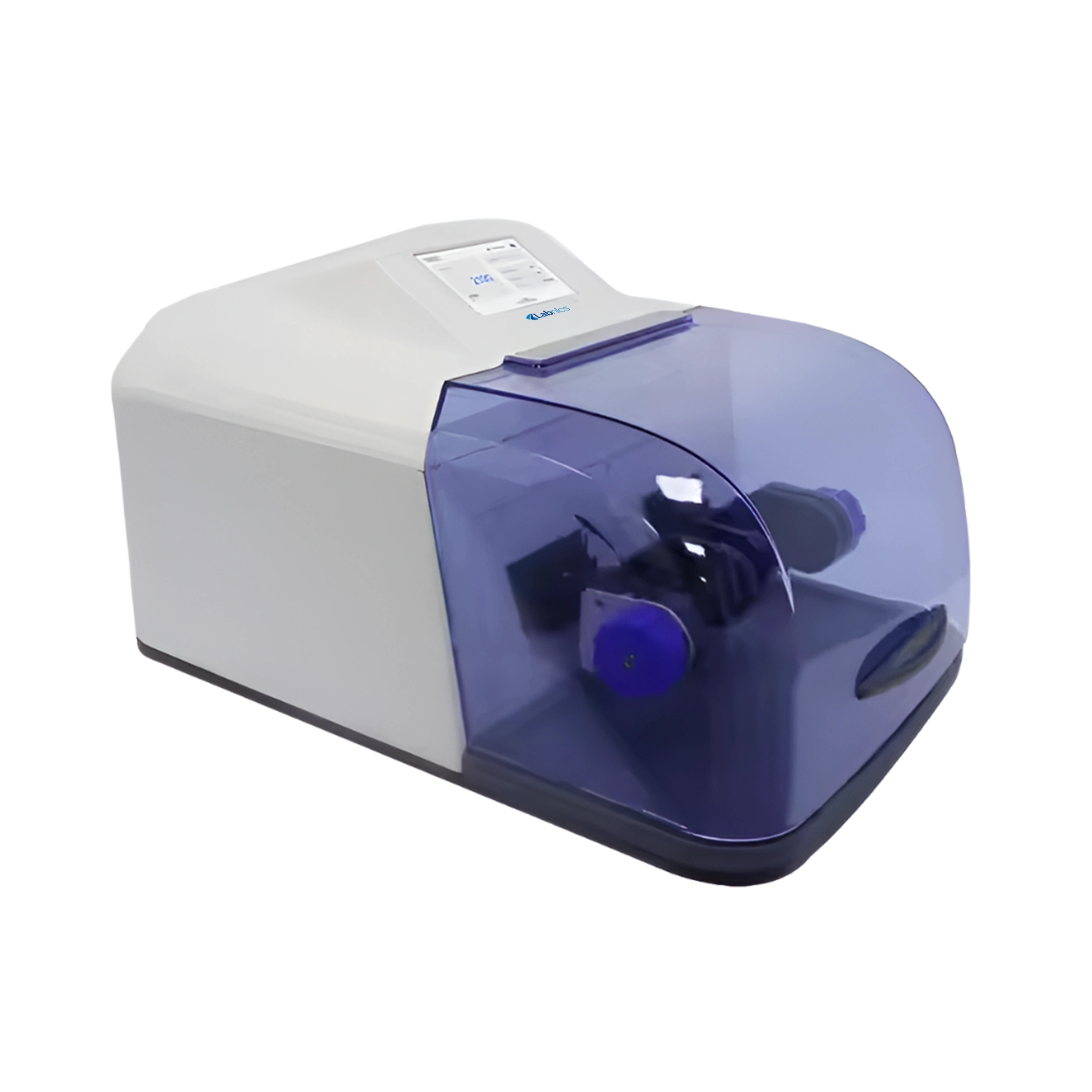

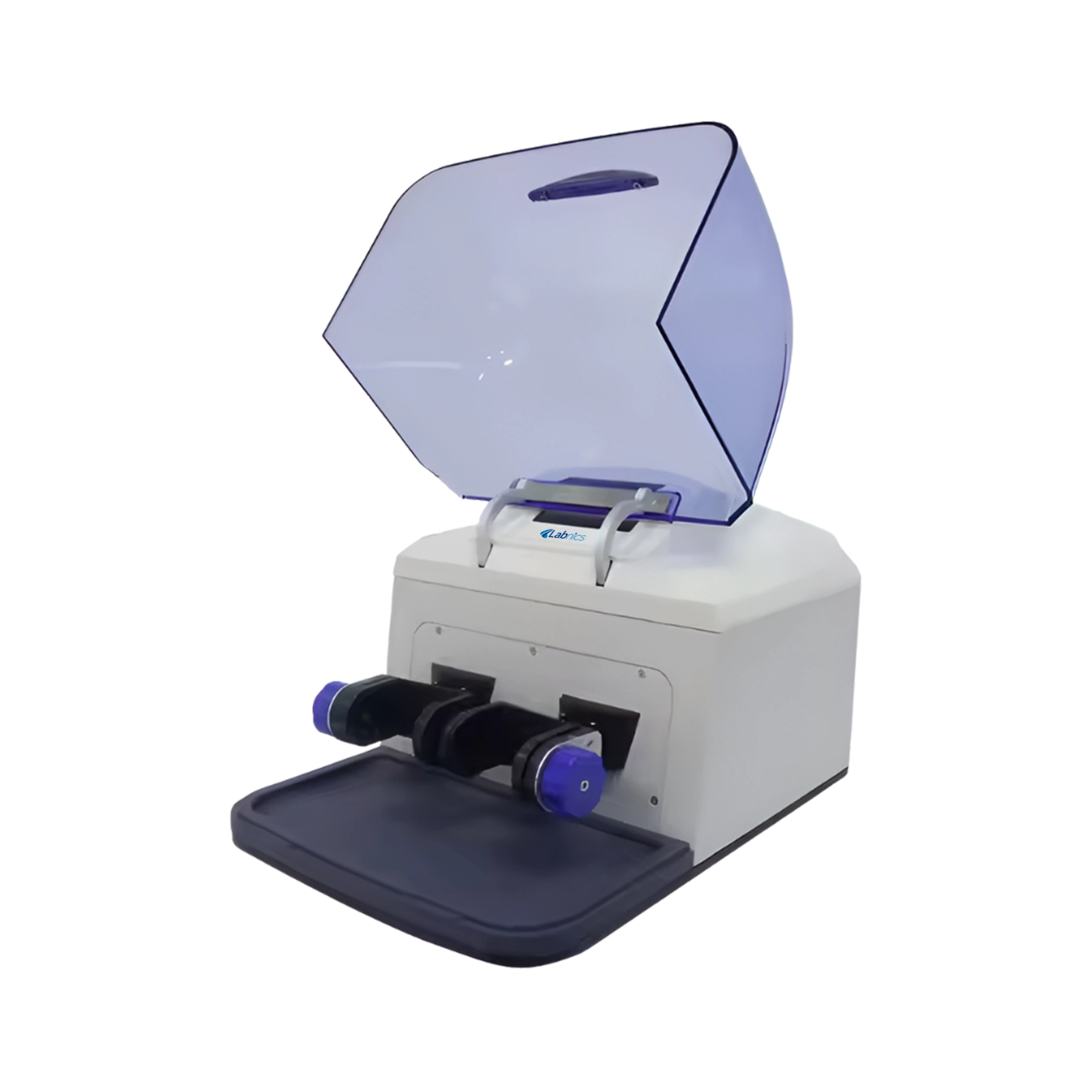

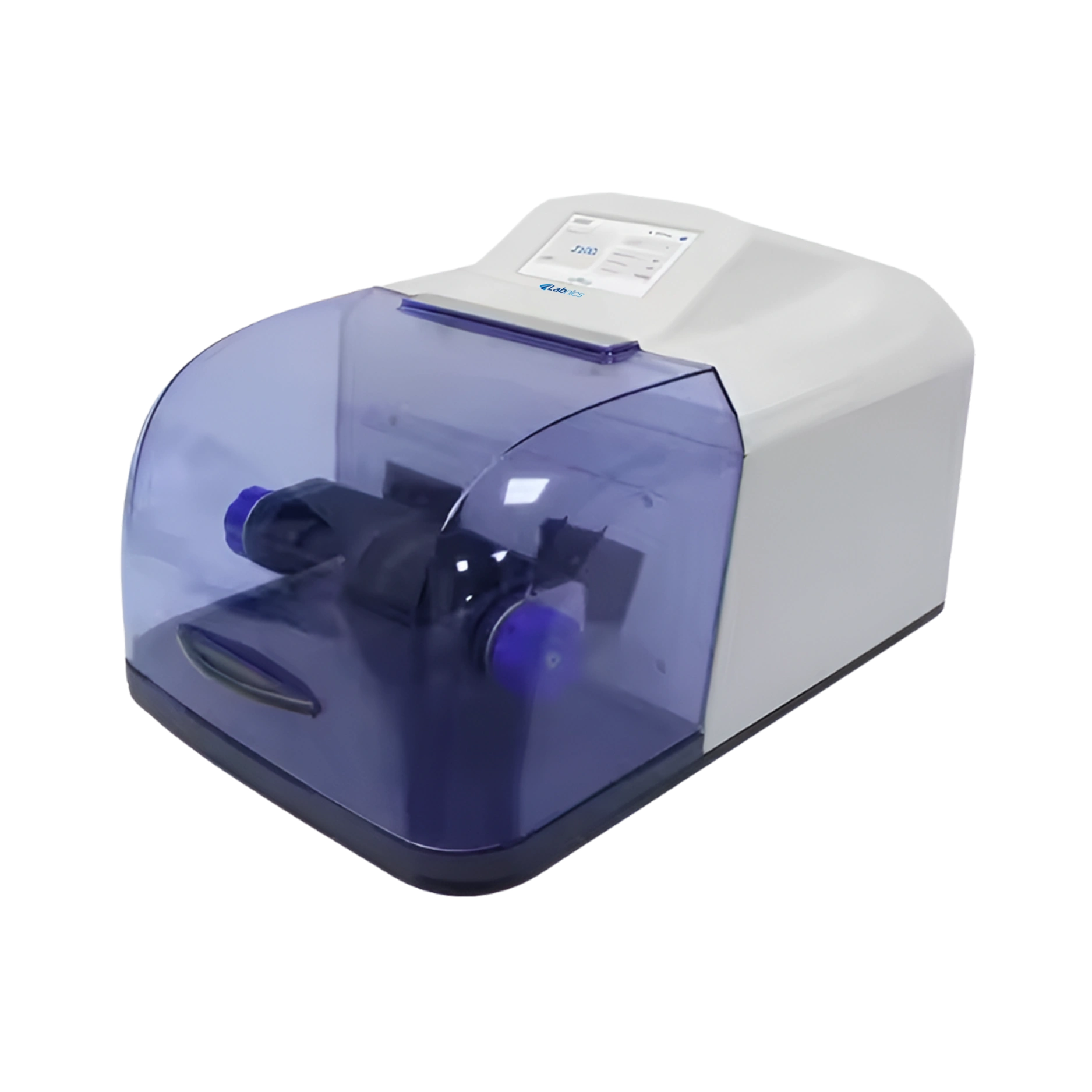

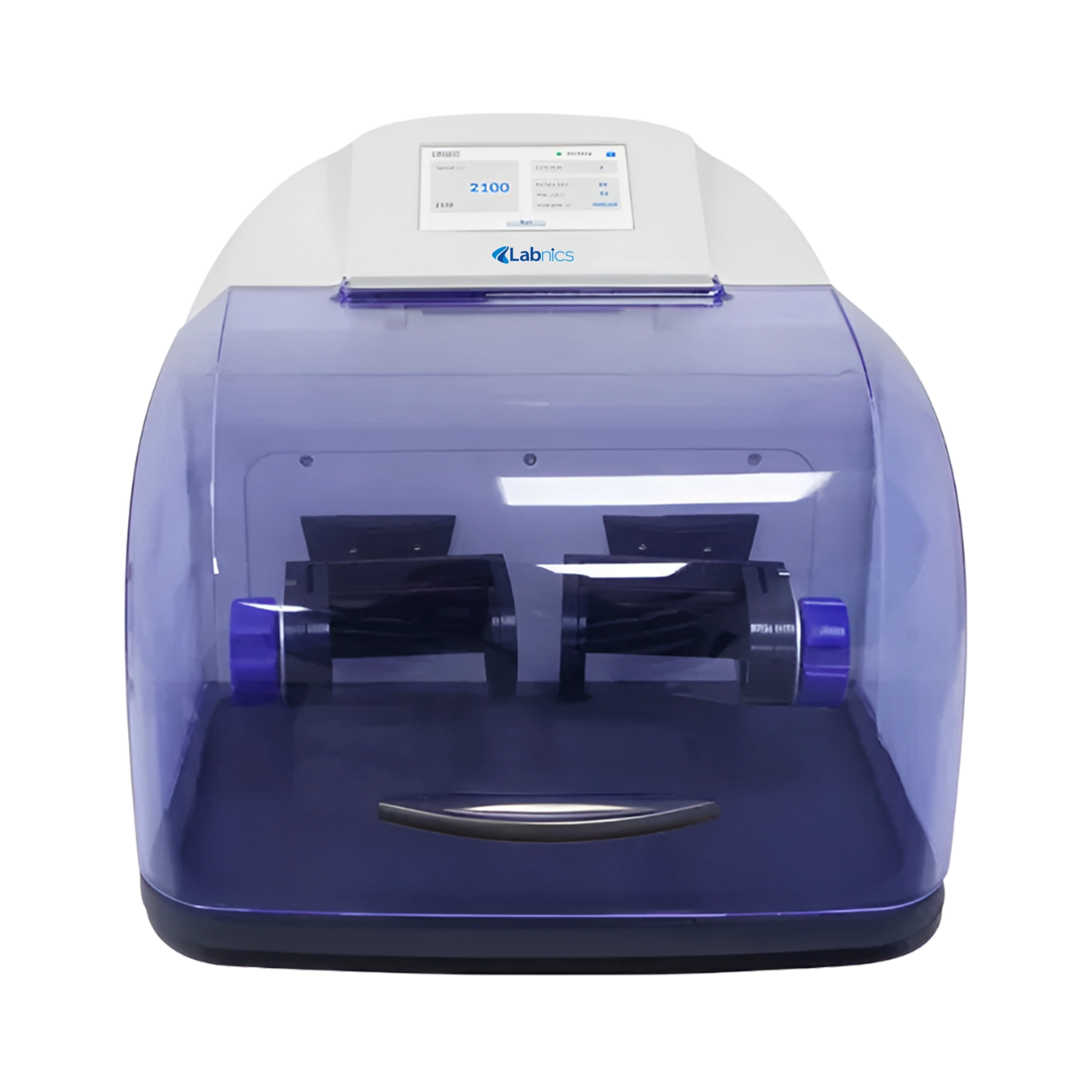

Ball Mill Homogenizer NBMH-100 offers a speed range of 180 to 2100 rpm, ensuring optimal performance. It supports various tube capacities for both standard and custom configurations. This mixer handles both wet and dry grinding methods and allows dual-batch processing. It includes high-quality adapters and grinding tubes made from durable materials for long-term use. Our unit has a compact design with a user-friendly interface for efficient and reliable operation.
$7,313.00
Specifications
| Speed range | 180 to 2100rpm |
| Acceleration Time | 2 sec |
| Deceleration Time | 2 sec |
| Capacity | 96×2ml 64×2ml 48×2ml 16×2ml 10×5ml Custom grinding tubes: 2×15ml 2×25ml 2×35ml 2×50ml , Standard tubes: 8×50ml |
| Final Fineness | 0 to 5µm |
| Grinding beads diameter | 0.1 to 30 mm |
| Grinding method | wet grinding, dry grinding |
| Adapter material | POM/Nylon/Al Alloy |
| Custom grinding tube material | Teflon/Stainless steel |
| Feed size | According to tube size |
| Sample Batch | 2 batches |
| Power | 450W |
| Voltage | AC100-120V/AC200-240V 50/60Hz |
| Size (L×W×H) | 350×530×311mm |
| Weight | 40 kg |
Features
Applications
Ask Expert
Labnics Ball Mill Homogenizers deliver high-efficiency grinding with a variable speed range for optimal performance. These mixers operate maintenance-free, reducing downtime and ensuring continuous operation. They provide safety with a protective hood that enhances user security. They utilize high-quality bearings to guarantee smooth, long-lasting performance. Our units support double-position operation, allowing simultaneous processing of two samples.
