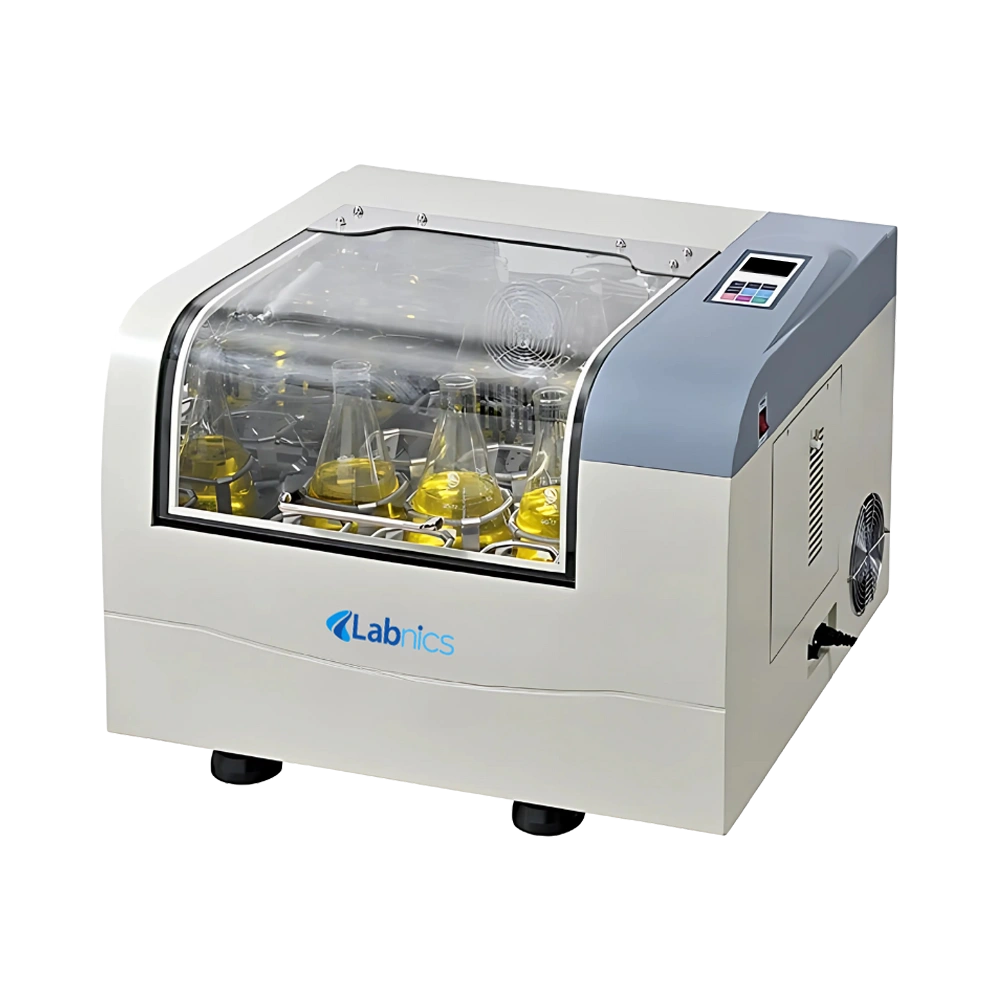

Benchtop Incubator Shaker NBIS-503 features a capacity of 83 liters to accommodate various sample requirements. It offers an upward-opening door design that provides easy accessibility. This unit ensures precise temperature control within a range of 4 to 60°C for accurate conditions. It incorporates multiple protection functions for secure operation. Our shaker includes a tempered glass door that provides insulation and clear observation.
| Door opening method |
Door upward |
| Capacity |
83 liters |
| Internal usable height |
340 mm |
| Opening height |
990 mm |
| Maximum loading capacity |
2000ml×4
1000ml×8
500ml×12
250ml×18
100ml×32
50ml×45 |
| Temperature range |
4 to 60°C (Ambient temp-15°C, minimum- 4°C) |
| Temperature accuracy |
±0.1°C |
| Temperature uniformity |
≤±1.0°C at 37°C |
| Ambient temperature range |
5 to 35°C |
| Temperature editing |
Repeat/Pace/8-segment curve editing |
| Rotation way |
Rotary/ reciprocating switchable |
| Rotation speed |
30 to 400 rpm |
| Rotation accuracy |
±1 rpm |
| Throw |
25 mm |
| Timing range |
0 to 999.59H |
| Display |
LCD |
| Control |
P.I.D microcomputer |
| Circulation |
Forced circulation convection |
| Drive mode |
Single-axis balanced drive |
| Tray material/Flask clamp/Chamber material |
Stainless steel type 304 |
| Bearings |
Original imported double row bearings |
| Compressor |
Variable frequency compressor |
| Clamp types |
Stainless steel flask clamp, plastic clamp, spring, test tube rack, sticky plate, ELISA plate, etc |
| Heating power |
400W |
| Motor power |
80W |
| Whole machine power |
706W |
| Power supply |
220V±10%, 50/60Hz |
| Tray size |
420×400mm |
| Internal dimension |
490×470×360mm |
| External dimension |
778×685×600mm |
| Net weight |
83 kg |
FAQ for Benchtop Incubator Shaker NBIS-503
1: How consistent is the performance?
Our Benchtop Incubator Shaker ensures smooth and stable operation through its five-dimensional dynamic balance drive technology. It reduces mechanical friction, minimizes noise, and extends the service life while delivering reliable experimental results.
2: Can this Benchtop Incubator Shaker NBIS-503 be used for long-duration experiments?
Our Benchtop Incubator Shaker is designed with a wide timing range of 0 to 999.59 hours, making it ideal for both short and long-term experiments. It allows you to run continuous tests with minimal supervision.
3: How does the Benchtop Incubator Shaker NBIS-503 ensure sample safety during operation?
Our Benchtop Incubator Shaker has a sensitive speed monitoring system that detects uncontrolled speed changes. It automatically stops and sounds an alarm, protecting valuable samples from damage or loss.
4: What kind of insulation does the door provide?
The Benchtop Incubator Shaker comes with a one-time hot-bent tempered glass door that ensures excellent thermal insulation. It keeps the internal environment stable while allowing clear observation of the chamber without opening it.
5: What is the best way to clean the chamber and trays?
It should be cleaned with a soft cloth and mild detergent solution, avoiding harsh chemicals that may damage the surfaces. It is best to remove trays and clamps for thorough cleaning and dry them completely before use.
