Semi-Automatic Chemistry Analyzer NSCA-201

Semi-Automatic Chemistry Analyzer NSCA-201 features 7 standard wavelength filters and 1 free filter position for user customization. It is designed with a capacity ranging from 0 to 3000 µL for optimal performance. This analyzer supports both flow cell and cuvette test modes, making it versatile for various applications. It operates efficiently in a work environment with temperatures between 0°C and 40°C and humidity levels of ≤80%. Our unit includes a 7-inch color LCD touchscreen, providing a user-friendly interface for easy operation.

---

$2,238.00

Buy Now Catalog

Specifications

Wavelength	7 standard filters (340nm, 405nm, 492nm, 510nm, 546nm, 578nm, 630 nm) and 1 free position
Wavelength accuracy	±2 nm, width ≤ 10nm
Capacity	0 to 3000 µL (≥500µL recommended)
Absorbance range	0 to 4.500 Abs
Absorbance accuracy	outside 0.0001 Abs, inside 0.00001 Ab
Carry over	< 1%
Repeatability	< 1%
Temperature range	0 to 40°C
Incubator temperature	37°C, 30°C, 25°C
Temperature accuracy	±0.1°C
Humidity	≤ 80%
Test mode	Kinetic, End point, Two-point, Absorbance
Quality control curve	X̅, SD, CV%, L-J
Flow cell	32 µL quartz glass, 10 mm
Heating source	Philips 6V 10W halogen lamp

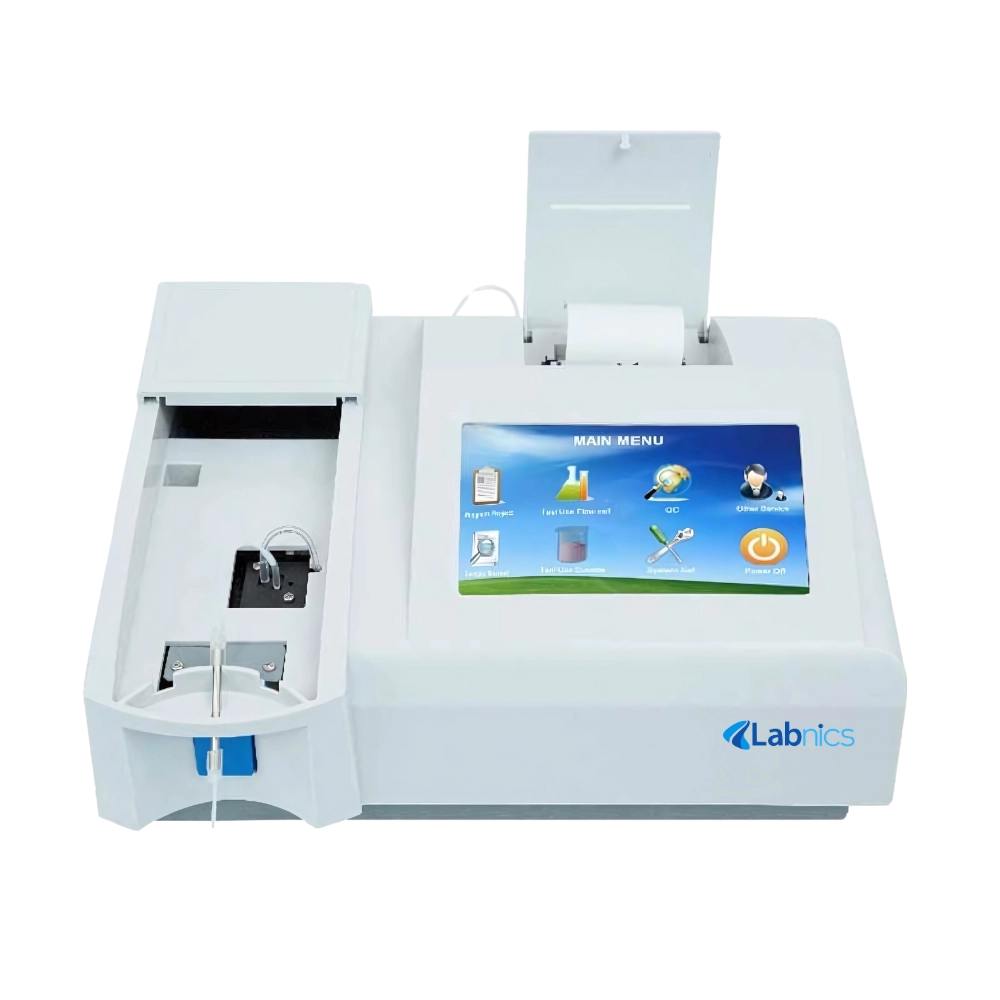

Display	7 inches color LCD, touchscreen
CPU	ARM series high-speed micro CPU
Data storage	≥10,000
Printer	Internal thermal printer
Interface	RS232
Power supply	100 to 240VAC，50 to 60Hz，
Overall dimension	340×270×160mm
Weight	5kg

Features

• RS232 interface for PC connection
• Internal thermal-sensitive printer
• Real-time curve display
• Memory for 10,000 samples
• Light source hibernate function
• Multiple test items pre-programmed

Applications

• Semi-Automatic Chemistry Analyzer NSCA-201 is utilized to determine the chemical properties of various samples, providing critical data for accurate testing and analysis. It is applied in clinical laboratories, hospitals, pharmaceutical research, environmental testing, food safety, and academic research institutions.

Test Parameters

Liver function	ALT, AST, ALP, T-BIL, D-BIL, TP, ALB, TTT, CHE, Nh3
Renal function	BUN, CRE, UA, URE, CO2-CP, γ-G
Lipids	T-CHO, TG, HDL-C, LDL-C
Cardiac function	CK, CK-MB, LDH
Immune proteins	IGA, IGG, IGM, C3
Others	GLU, HGB, AMS
