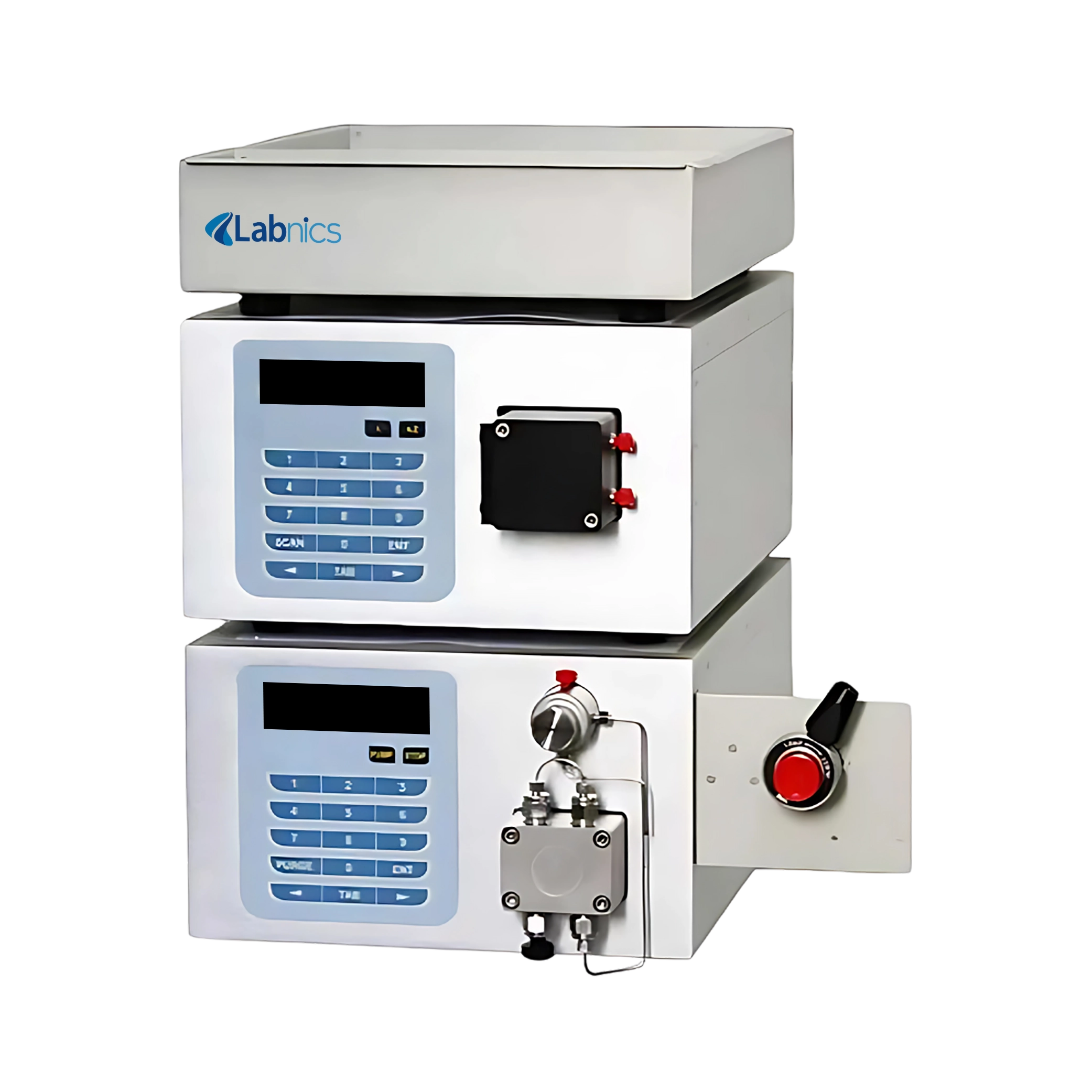

Isocratic HPLC System NHLC-200 is an isocratic pump liquid chromatography system. It involves a superior high-pressure pump that aids in accurate solvent delivery with high-precision and low-fluctuation. The UV detector assembly enhances stronger detection capability of the system. This leads to efficient separation of the desired pharmaceutical compound and obtains high operation reliability for extended time intervals.
$15,500.00
Specifications
| High pressure pump | 1 |
| Column | C18 |
| Column dimension | 250cm×4.6cm |
| Injection valve | 6-way ,7725i |
| Flow rate range | 0.001-9.999mL/min |
| Flow rate accuracy | ≤±0.5% (1mL/min, water, room temperature) |
| Flow rate precision | RSD≤0.08% (1mL/min, water, room temperature) |
| Pressure range | ≤42MPa |
| Detector | UV |
| Lamp | Deuterium lamp |
| Wavelength range | 190-700nm |
| Baseline noise | ≤8×10-6AU |
| Baseline drift | ≤1×10-4AU/h |
| Detection Limit | 4×10-9 g/ml (Naphthalene/methyl alcohol solvent) |
| Wavelength accuracy | ±1nm |
| Software | EasyChrom Chromstation |
Features
Applications
Optional Accessories
| Accessories No | Name |
| 1 | Autosampler |
| 2 | Column Oven |
Ask Expert
Labnics Isocratic HPLC systems ensure precise solvent delivery with minimal fluctuation. They are equipped with advanced UV detectors for enhanced detection and efficient compound separation. These systems provide reliable operation over extended periods, ideal for continuous use. They feature easily accessible maintenance parts for quick replacements without dismantling. Our units also include a pressure monitoring system that halts the pump if pressure limits are exceeded.
