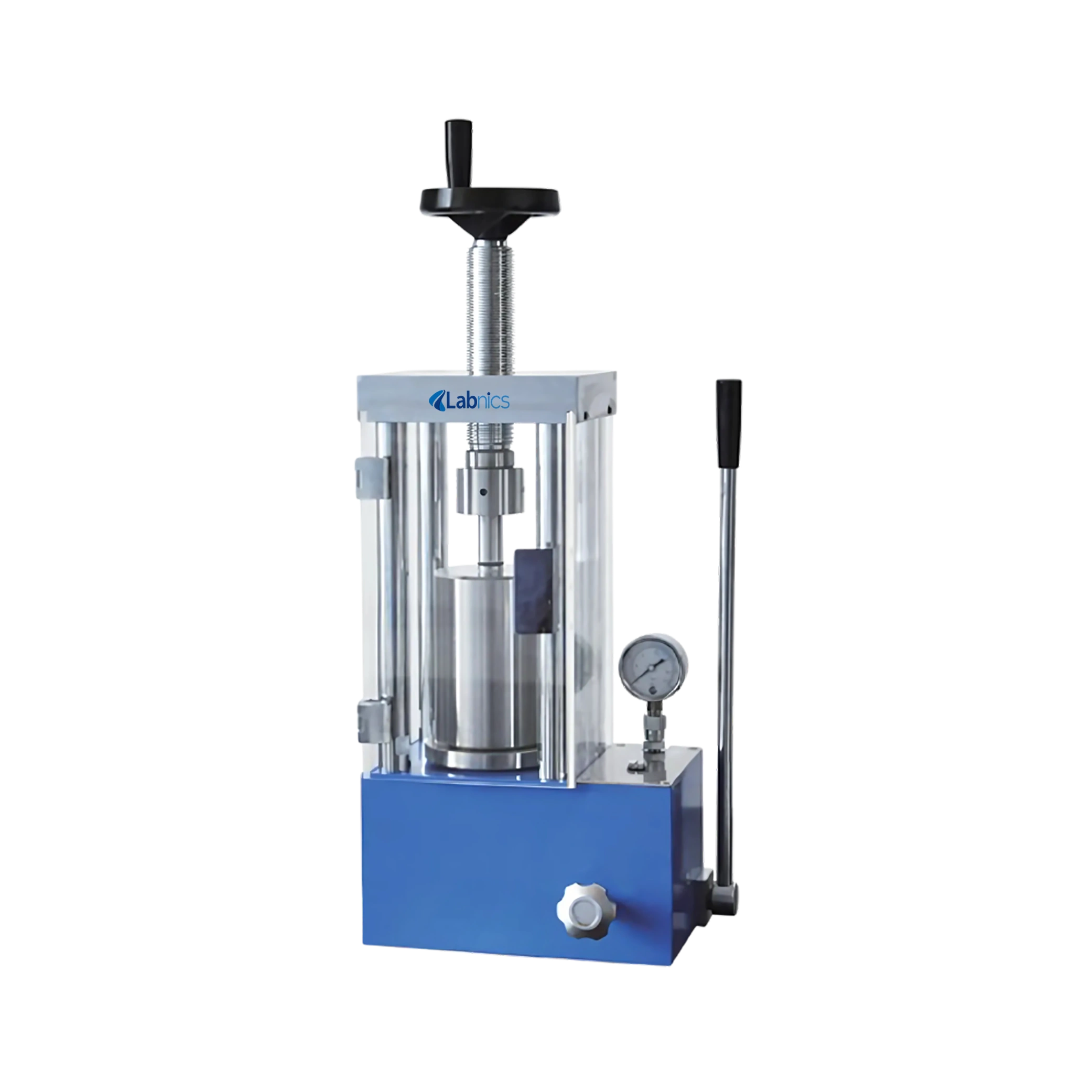

Manual CIP Press NMCIP-100 is a compact, hand-operated press designed for cold isostatic pressing applications. It offers a maximum pressure capacity of up to 12T for efficient sample compaction. This system is built with heavy-duty stainless steel for durability and corrosion resistance. It’s simple lever mechanism ensures user-friendly operation without the need for electricity. Our press includes a secure locking system to prevent pressure leakage during operation.
$31,500.00
Specifications
| Pressure Range | 0 to 12T (0 to 17 MPa) |
| Piston Diameter | 95 mm |
| Max. Piston Stroke | 40 mm |
| Isostatic pressure | 0 to 300MPa |
| Protective door | Organic glass material |
| Ambient temperature | 10℃ to 40℃ |
| Power Supply | 220V, 50 to 60 Hz |
| Pressure Vessel (M×N) | 22 × 70 mm |
| Dimensions (L×W×H) | 305 × 195 × 530 mm |
| Weight | 90 kg |
Features
Applications
Ask Expert
FAQ for Manual CIP Press NMCIP-100
1: How does the Manual CIP Press NMCIP-100 operate?
Manual CIP Press NMCIP-100 operates through a hand-driven hydraulic pump to apply isostatic pressure to the sample chamber.
2: Is electricity required to use Manual CIP Press NMCIP-100?
No, Manual CIP Press NMCIP-100 operates manually and does not require electricity, making it suitable for power-restricted labs.
3: Can Manual CIP Press NMCIP-100 handle different mold sizes?
Yes, Manual CIP Press NMCIP-100 supports multiple mold sizes for flexibility in sample dimensions.
4: What type of materials can be processed using Manual CIP Press NMCIP-100?
Manual CIP Press NMCIP-100 is suitable for ceramics, metal powders, minerals, and other laboratory powders.
5: Is Manual CIP Press NMCIP-100 portable?
Yes, Manual CIP Press NMCIP-100 has a compact design, making it portable and easy to use in various lab setups.
6: How does the Manual CIP Press work?
Manual CIP Press works by manually pumping a hydraulic handle that applies isostatic pressure through a fluid medium to compress the sample
7: What type of samples can be pressed using Manual CIP Press?
It is ideal for ceramics, powders, minerals, and other laboratory materials needing uniform compaction.
8: Is electricity required to operate a manual CIP press?
No, a manual CIP press is fully functional without electricity, making it suitable for remote or power-restricted environments.
9: What are the main advantages of using a Manual CIP Press?
Manual CIP Press offers full control, portability, no power dependency, and lower maintenance costs.
Manual CIP Presses are compact devices used for cold isostatic pressing applications. They operate manually to make an easy operation. They come with corrosion-resistant stainless-steel chambers for enhanced durability. They ensure uniform pressure application through all-around compression. Our press includes a secure locking system to prevent pressure leakage during operation.
