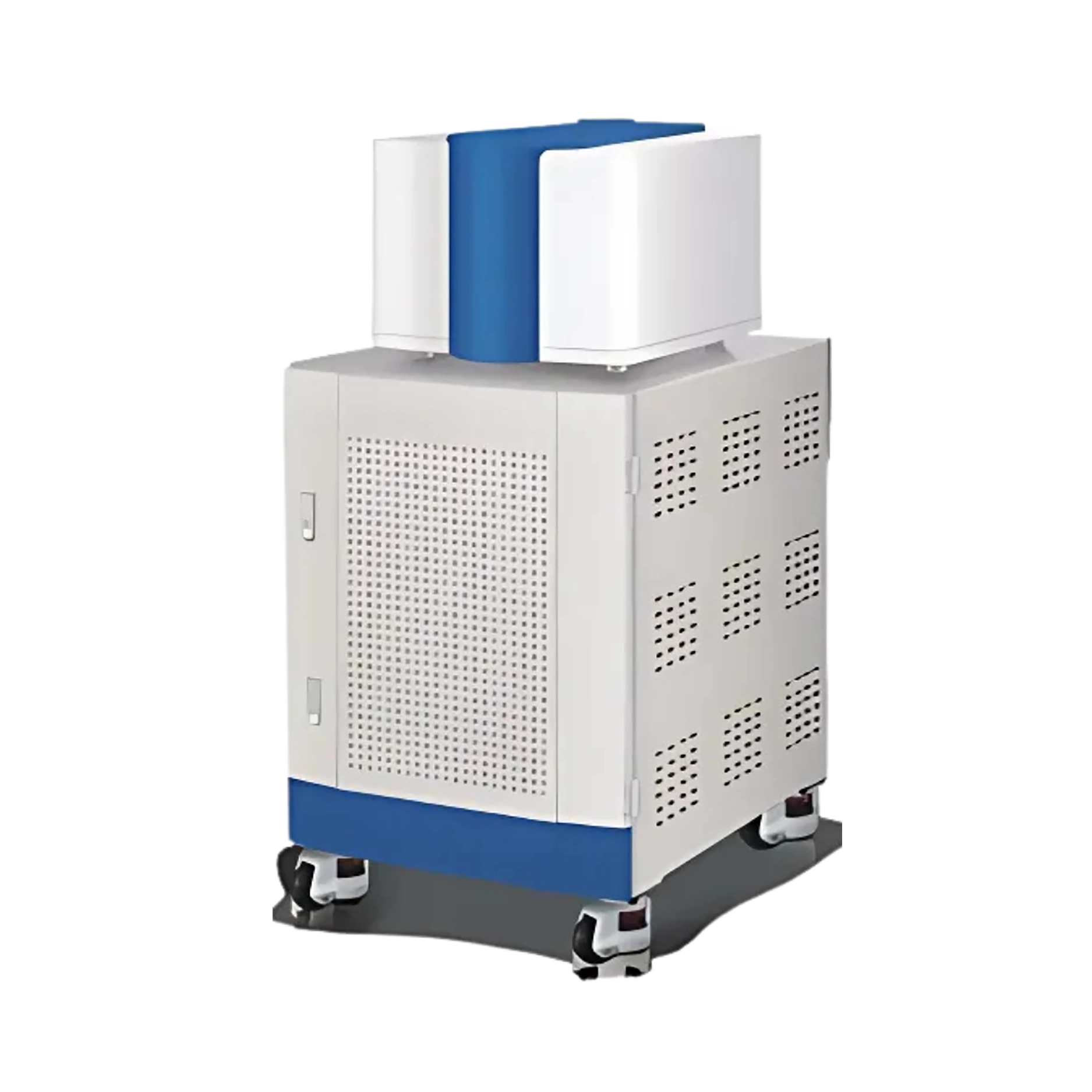

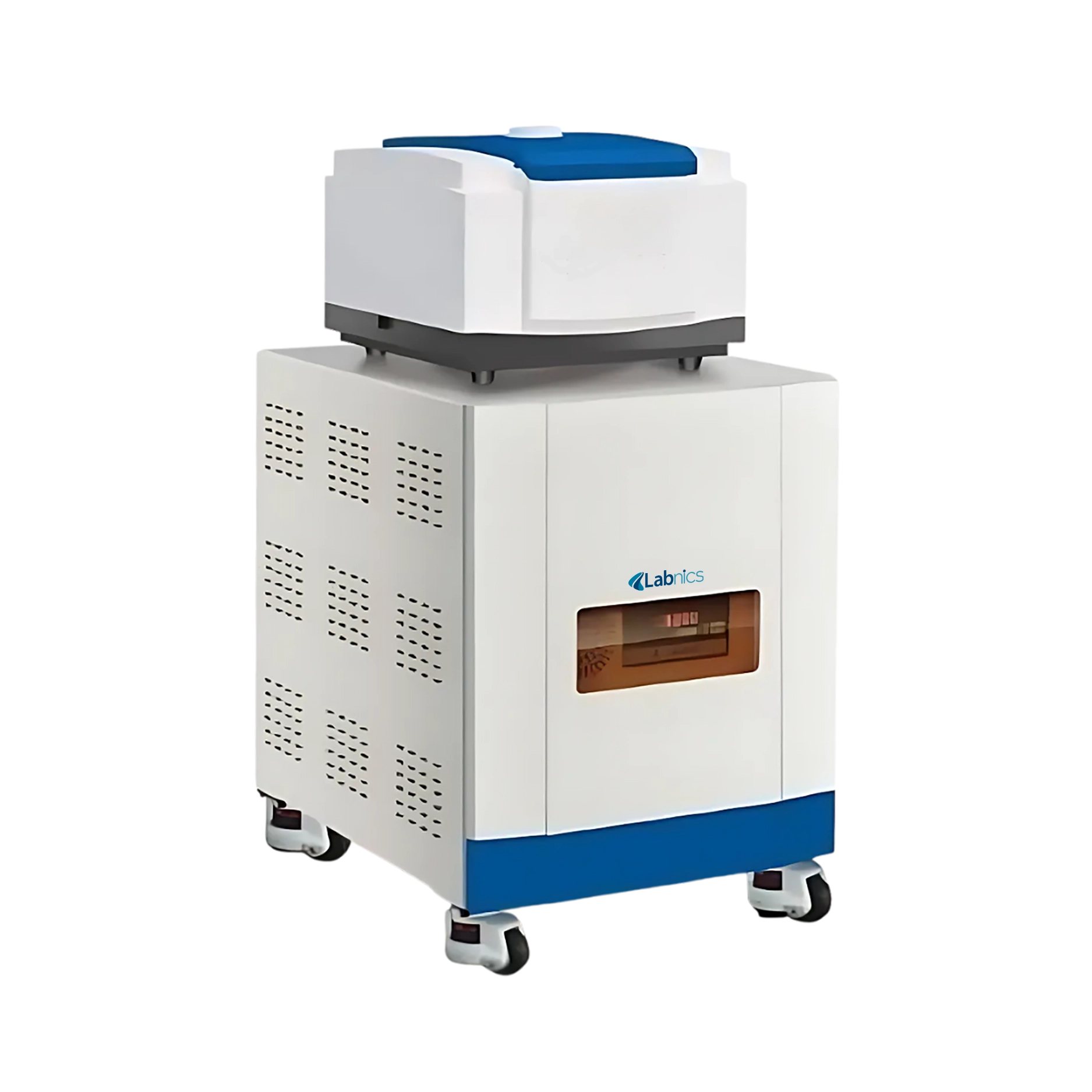

NMR Spectrometer NNMR-100 provides a magnetic field intensity of 0.50 ± 0.01 T for high-precision analysis. It offers high magnetic field uniformity of ≤30 ppm for stable and accurate analysis. This system features advanced RF power control for precise signal processing. Its dual temperature control ensures consistent performance during experiments. Our model has an industrial-grade control platform which supports fast data processing and analysis.
$49,875.00
Specifications
| Magnet Type | Permanent magnet |
| Magnetic Field Intensity | 0.50 ± 0.01 T |
| Magnetic Field Uniformity | ≤ 30 ppm |
| Magnetic Field Stability | ≤ 300 Hz/hour |
| Temperature Control | Dual nonlinear control; adjustable 25°C to 35°C |
| RF Pulse Frequency | 1 to 30 MHz |
| Frequency Control Accuracy | 0.1 Hz |
| Pulse Accuracy | 10 ns |
| RF Power Amplifier | > 300 W |
| Maximum Bandwidth | 5000 KHz |
| Probe Coil | Room Temp 18A; Ø 20 mm; Min TE: 100 µs |
| Maximum Echo Number | 18,000 |
| Control Platform | PCI bus, i7 CPU, 8GB RAM, 1TB HDD |
| Temperature | 22 to 28°C |
| Humidity | 30 to 70% |
| Power supply | 220V, 50Hz |
| Dimensions (Magnet Box) | 445 × 505 × 371 mm |
| Weight | 170 kg |
Features
Applications
Standard Accessories
Test tube stand × 1 unit
USB Splitter × 1 unit
Special tools × 1 unit
50Ω terminal × 1 unit
BNC adapter assembly × 1 unit
Testing line × 2 unit
Fuses × 5 unit
Ask Expert
FAQ for NMR Spectrometer NNMR-100
1: What is the NMR Spectrometer NNMR-100 used for?
The NMR Spectrometer NNMR-100 is used for analyzing the molecular structure, purity, and dynamics of samples in research, pharmaceuticals, and chemical industries.
2: Are both organic and aqueous samples suitable for this NMR spectrometer?
Yes, both organic solvents and water-based samples are supported, provided they are compatible with the selected probe and deuterated solvents are used as required.
3: What is the recommended sample volume for the NNMR-100?
Typically, 0.5–0.7 mL of sample in a standard 5 mm NMR tube is recommended for optimal performance.
4: Does it include software for analysis?
Yes, Our model comes with integrated software for spectral acquisition, processing, and interpretation.
5: What is the maintenance requirement of the NNMR-100?
With a cryogen-free design and digital automation, it offers low maintenance operation.
6: What does NMR spectrometer help identify?
NMR (Nuclear Magnetic Resonance) Spectrometer is an analytical instrument used to determine the molecular structure and dynamics of a sample by measuring the magnetic properties of atomic nuclei.
7: What types of samples can be analyzed using NMR Spectrometer?
NMR can be used for both liquid and solid samples including organic compounds, polymers, proteins, pharmaceuticals, and even living cells.
8: Does Labnics NMR spectrometer ensure safety for use?
Yes, but strict safety precautions must be followed due to strong magnetic fields and use of cryogens like liquid helium and nitrogen.
9: What is the temperature range for sample analysis in NMR Spectrometer?
Standard NMR Spectrometer can analyze samples from around -150°C to +150°C, depending on the probe and system.
NMR Spectrometer is a high-resolution instrument designed for precise molecular structure analysis. These operate with a strong magnetic field strength and a high frequency range for accurate chemical shift detection. These systems feature automated sample loading for high-throughput analysis. They include an advanced temperature control unit for stable operation. Our models offer user-friendly software for efficient data processing.
