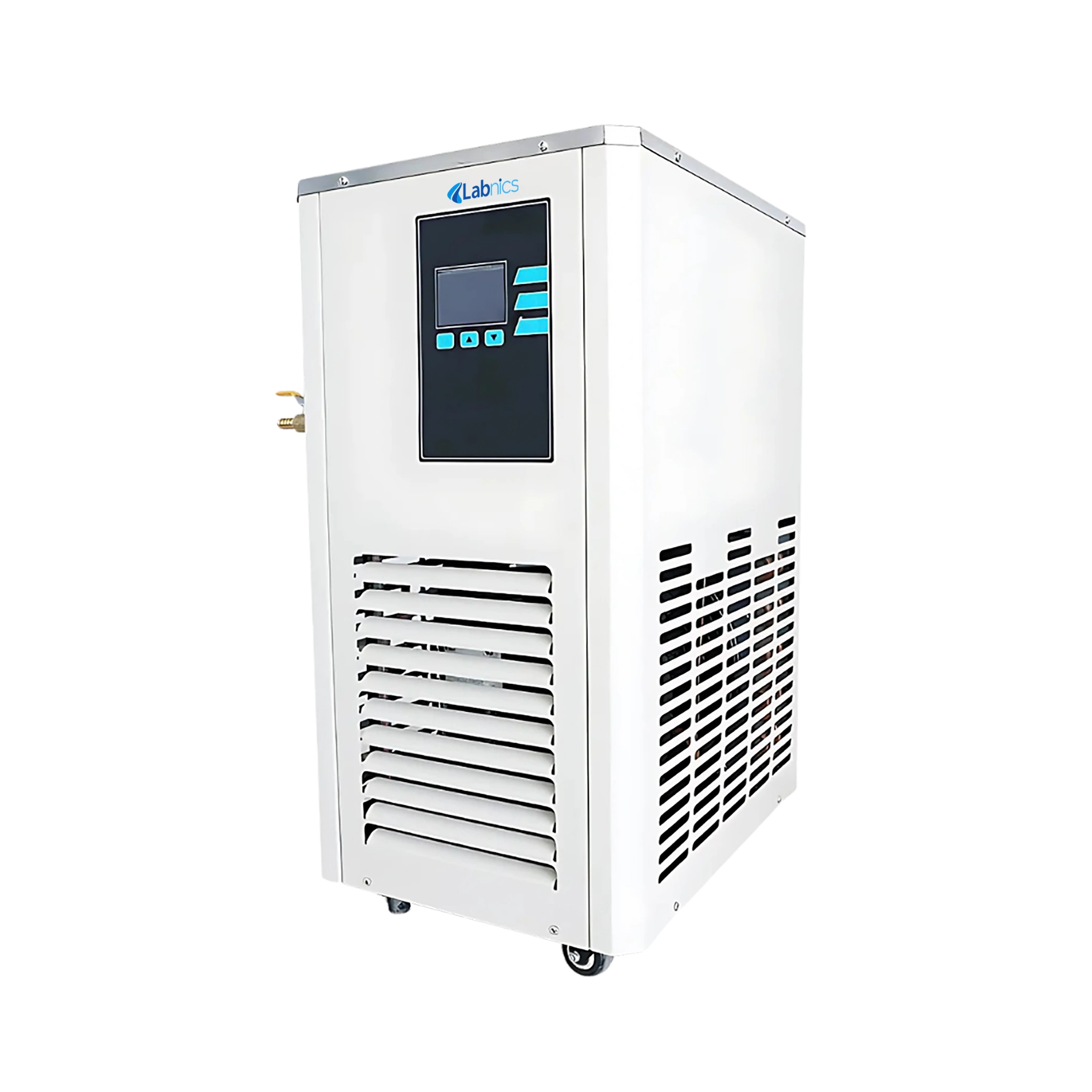

Recirculating Chiller NRC-100 offers a temperature range from -10°C to RT for reliable low-temperature operations. It comes with a microcomputer control system for accurate and stable temperature regulation. This unit features a 6.8-liter tank to support continuous coolant circulation. It utilizes R134A refrigerant for efficient and eco-friendly cooling. Our chiller includes a bright digital LCD for clear temperature display and simple control.
$2,063.00
Specifications
| Tank capacity | About 6.8L |
| Temperature range | -10°C to RT |
| Room Temperature | 5 to 35°C |
| Temperature accuracy | ±0.1°C |
| Temperature sensor | PT100 |
| Room humidity | ≤70% ventilation |
| Flow | 20 to 40L/min |
| Lifting head | 4 to 6M |
| Pressure | ≤0.4MPa |
| Heat exchange area | 4.2㎡ |
| Air volume | 760m³/h |
| Refrigerant | R134A |

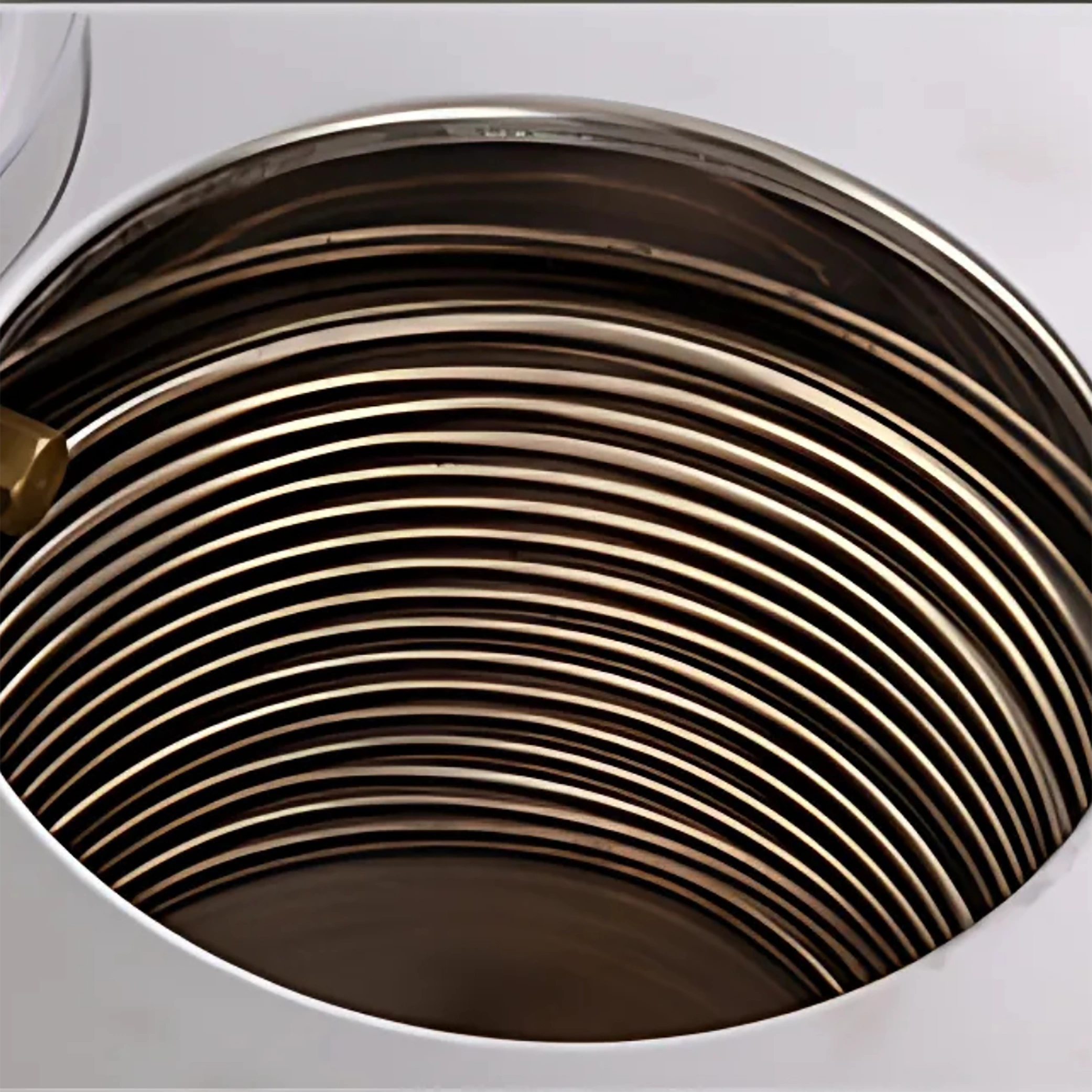

| Condensing coil | Φ8Copper tube nickel plated |
| Material | Cold plate spray anticorrosion |
| Compressor type | 1P |
| Compressor quantity | 1 |
| Screen display | LCD screen, key operation |
| Safety protection | Delay, overcurrent, overheating |
| Compressor power | 500W |
| Cooling capacity | 1550W |
| Total power consumption | 652W |
| Power supply | 220V 50Hz 1phase |
| Outer loop interface | Φ12mm |
| Tank dimension | Φ200×185 mm |
| Product dimension | 423×485×(760+400) mm |
| Packaging dimension | 570×460×790 mm |
| Weight | 43 kg |
| Packaging weight | 47 kg |
Features
Applications
Ask Expert
FAQ for Recirculating Chiller NRC-100
1: Can the flow rate be adjusted according to the requirement?
Yes, the Recirculating Chiller includes an adjustable flow pump, allowing flexibility based on application needs. It helps match the cooling demand of different external equipment.
2: Is the Recirculating Chiller NRC-100 suitable for continuous operation?
Yes, our Recirculating Chiller is designed for continuous and stable operation, making it ideal for long-duration experiments or processes. The closed-loop system and reliable compressor ensure consistent performance without frequent interruptions.
3: Can this Recirculating Chiller be connected to external equipment?
Yes, our Recirculating Chiller features an outer loop interface of ?12 mm, allowing seamless connection to rotary evaporators, vacuum freeze dryers, and other laboratory devices. This enhances the flexibility and usability of the system.
4: Can the Recirculating Chiller NRC-100 function in areas with poor water conditions?
Yes, the air-cooled system eliminates dependency on an external water supply, making it suitable for environments with poor water quality, low pressure, or water scarcity. It ensures reliable performance even without water infrastructure.
5: How often should the Recirculating Chiller NRC-100 be cleaned?
It is recommended to clean the exterior surfaces and ventilation openings every 2 to 4 weeks to prevent dust buildup. Regular cleaning ensures proper airflow and prevents overheating of internal components.
Labnics Recirculating Chiller features automated water level detection, to maintain optimal water levels. They feature a compact design with a user-friendly touchscreen for easy monitoring. These units are equipped with a microprocessor PID controller for precise temperature control. Our recirculating chillers are built with durable steel construction for long-lasting performance. They come with high-efficiency pumps that ensure steady flow rates.
